Milling Tools

916520

Catalogue-No.: 916520
DIN-Standard: WEXO-Standard
Coating: X.TREME
Cutting dia. tolerance: 0/-0,02
Shank dia. tolerance: h6
Spiral: ~30
Shank execution: DIN 6535HA
Substrate: VHM
Execution: FH65; Ball nose end mill
High Speed and High Hard Cutting: qualified for High Speed or High Hard Cutting
Cutting Data: conventional (PDF-Download)
HSM (PDF-Download)



Detailed data

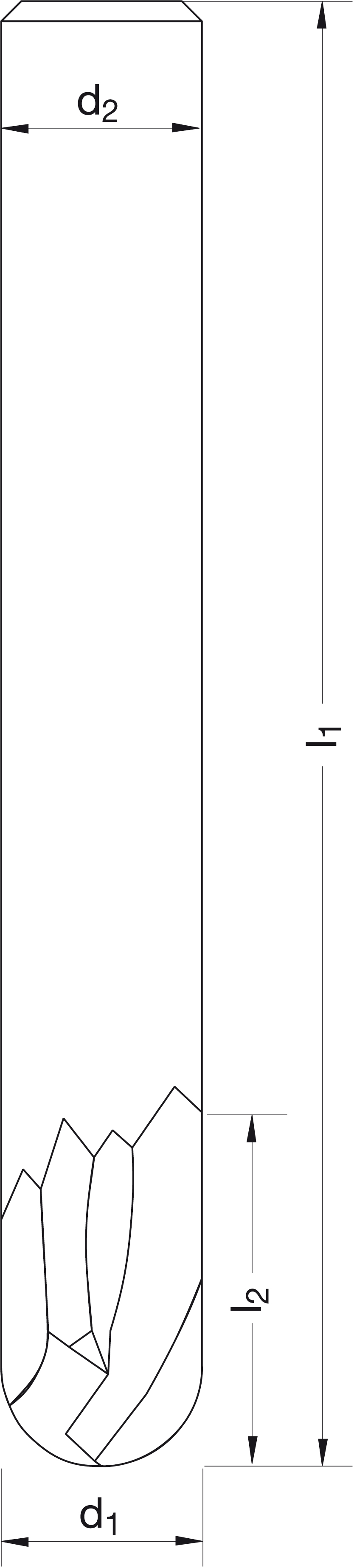

 d1  R  l1  l2  d2  z  Art.-Nr.
1,00
0,50
50
1,00
4,00
2
910520
1,50
0,75
50
2,00
4,00
2
910519
2,00
1,00
50
2,00
6,00
2
910521
3,00
1,50
60
3,00
6,00
2
910522
4,00
2,00
60
4,00
6,00
2
910523
5,00
2,50
80
5,00
6,00
2
910524
6,00
3,00
90
6,00
6,00
2
910525
8,00
4,00
100
8,00
8,00
2
910527
10,00
5,00
100
10,00
10,00
2
910529
12,00
6,00
110
12,00
12,00
2
910531
16,00
8,00
140
16,00
16,00
2
910535
20,00
10,00
160
20,00
20,00
2
910539


back to the list | new search |


z= Number of flutes
