Milling Tools

916510

Catalogue-No.: 916510
DIN-Standard: WEXO-Standard
Coating: X.TREME
Cutting dia. tolerance: 0/-0,02
Shank dia. tolerance: h6
Spiral: ~30
Shank execution: DIN 6535HA
Substrate: VHM
Execution: FH60; Ball nose end mill
High Speed and High Hard Cutting: qualified for High Speed or High Hard Cutting
Cutting Data: conventional (PDF-Download)
HSM (PDF-Download)



Detailed data

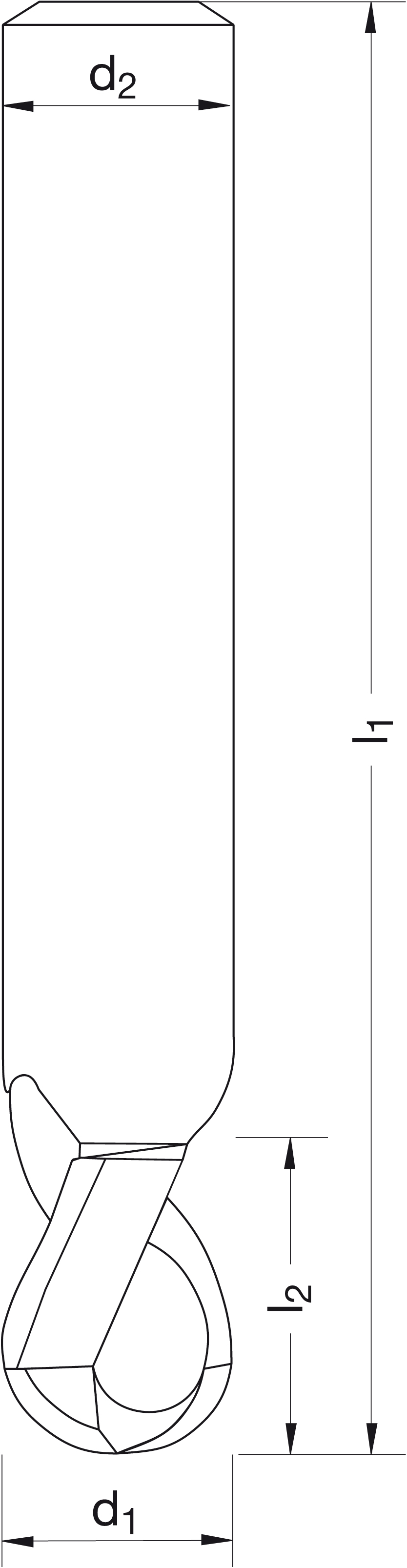

 d1  R  l1  l2  d2  z  Art.-Nr.
1,00
0,50
50
3,00
4,00
2
910780
1,20
0,60
50
3,00
4,00
2
910781
1,50
0,75
50
4,00
4,00
2
910783
1,80
0,90
50
5,00
4,00
2
910785
2,00
1,00
50
5,00
6,00
2
910786
3,00
1,50
60
8,00
6,00
2
910788
4,00
2,00
70
8,00
6,00
2
910790
5,00
2,50
80
10,00
6,00
2
910792
6,00
3,00
90
12,00
6,00
2
910794
6,50
3,25
90
14,00
6,00
2
910795
8,00
4,00
100
14,00
8,00
2
910798
10,00
5,00
100
18,00
10,00
2
910802
12,00
6,00
110
22,00
12,00
2
910804
16,00
8,00
140
30,00
16,00
2
910808
18,00
9,00
140
34,00
16,00
2
910809
20,00
10,00
160
38,00
20,00
2
910810


back to the list | new search |


z= Number of flutes
