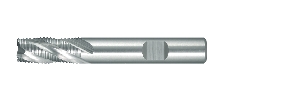

Milling Tools
| Catalogue-No.: |
844860 |
| DIN-Standard: |
DIN 844/B |
| Coating: |
none |
| Cutting profile: |
Typ HR |
| Cutting dia. tolerance: |
js14 |
| Shank dia. tolerance: |
h6 |
| Spiral: |
~30 |
| Shank execution: |
DIN 1835B |
| Substrate: |
HSSE |
|
|
| Detailed data
| d1 | l1 | l2 | d2 | z | Art.-Nr. | 6,00 | 57 | 13,00 | 6,00 | 3 | 041030 | 8,00 | 69 | 19,00 | 10,00 | 3 | 041032 | 10,00 | 72 | 22,00 | 10,00 | 4 | 041034 | 12,00 | 83 | 26,00 | 12,00 | 4 | 041036 | 14,00 | 83 | 26,00 | 12,00 | 4 | 041038 | 16,00 | 92 | 32,00 | 16,00 | 4 | 041040 | 18,00 | 92 | 32,00 | 16,00 | 4 | 041042 | 20,00 | 104 | 38,00 | 20,00 | 4 | 041044 | 22,00 | 104 | 38,00 | 20,00 | 6 | 041045 | 25,00 | 121 | 45,00 | 25,00 | 6 | 041047 | 30,00 | 121 | 45,00 | 25,00 | 6 | 041050 |
| back to the list | new search | |
z= Number of flutes |
|
|
