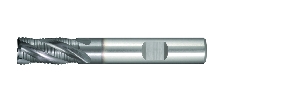

Milling Tools
| Catalogue-No.: |
544464 |
| DIN-Standard: |
DIN 844/B |
| Coating: |
FUTURA |
| Cutting profile: |
Typ HRS |
| Cutting dia. tolerance: |
js14 |
| Shank dia. tolerance: |
h6 |
| Spiral: |
~30 |
| Shank execution: |
DIN 1835B |
| Substrate: |
HSSE-PS105 |
| Cutting Data: |
conventional (PDF-Download) |
|
|
| Detailed data
| d1 | l1 | l2 | d2 | z | Art.-Nr. | 6,00 | 57 | 13,00 | 6,00 | 4 | 443033 | 8,00 | 69 | 19,00 | 10,00 | 4 | 443035 | 10,00 | 72 | 22,00 | 10,00 | 4 | 443037 | 12,00 | 83 | 26,00 | 12,00 | 4 | 443039 | 14,00 | 83 | 26,00 | 12,00 | 4 | 443041 | 16,00 | 92 | 32,00 | 16,00 | 4 | 443043 | 18,00 | 92 | 32,00 | 16,00 | 4 | 443045 | 20,00 | 104 | 38,00 | 20,00 | 4 | 443047 |
| back to the list | new search | |
z= Number of flutes |
|
|
