VATRUGSI-HM

Catalogue-No.: VATRUGSI-HM
DIN-Standard: WEXO-Standard
Coating: TiAlN-TiSiN
Cutting dia. tolerance: h10
Shank dia. tolerance: h6
Spiral: ~38,00 / 41,00
Shank execution: DIN 6535HB
Substrate: VHM
Execution: XTOP Milling; unequal helix; Trochoidal end mill



Detailed data

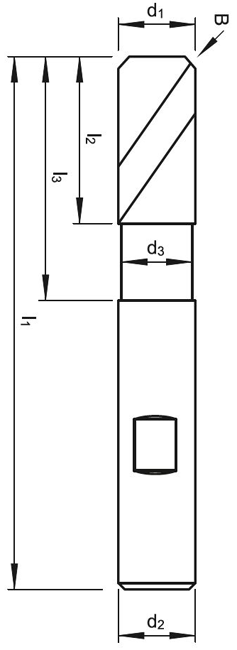

 d1  B  l1  l2  l3  d2  z  d3  Art.-Nr.
6,00
0,10
57
19,00
25,00
6,00
5
5,90
653306
8,00
0,15
63
25,00
30,00
8,00
5
7,90
653308
10,00
0,20
72
32,00
35,00
10,00
5
9,90
653310
12,00
0,20
83
38,00
45,00
12,00
6
11,90
653312
16,00
0,30
108
42,00
55,00
16,00
6
15,90
653314
20,00
0,40
126
50,00
70,00
20,00
6
19,90
653316



z= Number of flutes
