TL4HFTA-HM

Catalogue-No.: TL4HFTA-HM
DIN-Standard: WEXO-Standard
Coating: TiAlN+
Cutting dia. tolerance: 0/-0,02
Shank dia. tolerance: h6
Spiral: 0
Shank execution: DIN 6535HA
Substrate: VHM
Execution: RatioMill; FU65; Corner radius end mill; High-Feed end mill
High Speed and High Hard Cutting: qualified for High Speed or High Hard Cutting
Cutting Data: conventional (PDF-Download)
HSM (PDF-Download)



Detailed data

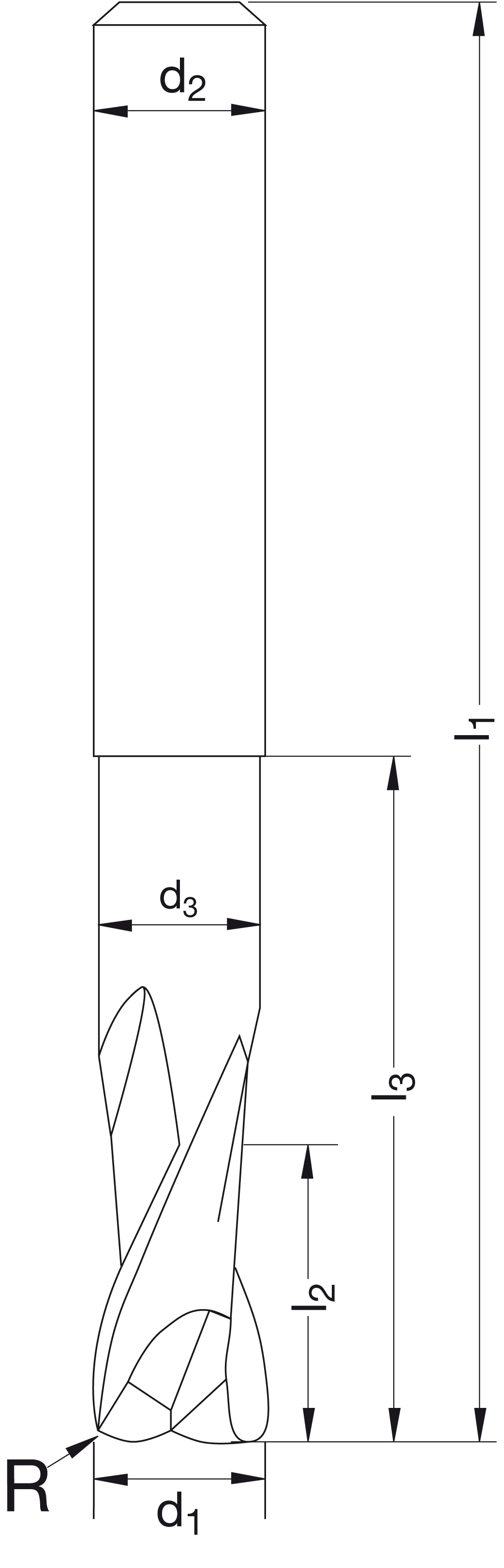

 d1  R  l1  l2  l3  d2  z  Art.-Nr.
2,00
0,50
70
1,00
6,00
6,00
4
656020
3,00
0,50
70
1,00
8,00
6,00
4
656021
4,00
0,50
70
2,00
10,00
6,00
4
656022
5,00
0,50
70
2,00
10,00
6,00
4
656023
6,00
0,50
90
3,00
12,00
6,00
4
656024
6,00
1,00
90
3,00
12,00
6,00
4
656025
8,00
1,00
100
4,00
16,00
8,00
4
656026
8,00
2,00
100
4,00
16,00
8,00
4
656027
10,00
1,00
100
4,00
20,00
10,00
4
656028
10,00
2,00
100
4,00
20,00
10,00
4
656029
12,00
2,00
110
5,00
25,00
12,00
4
656030
12,00
3,00
110
5,00
25,00
12,00
4
656031



z= Number of flutes
